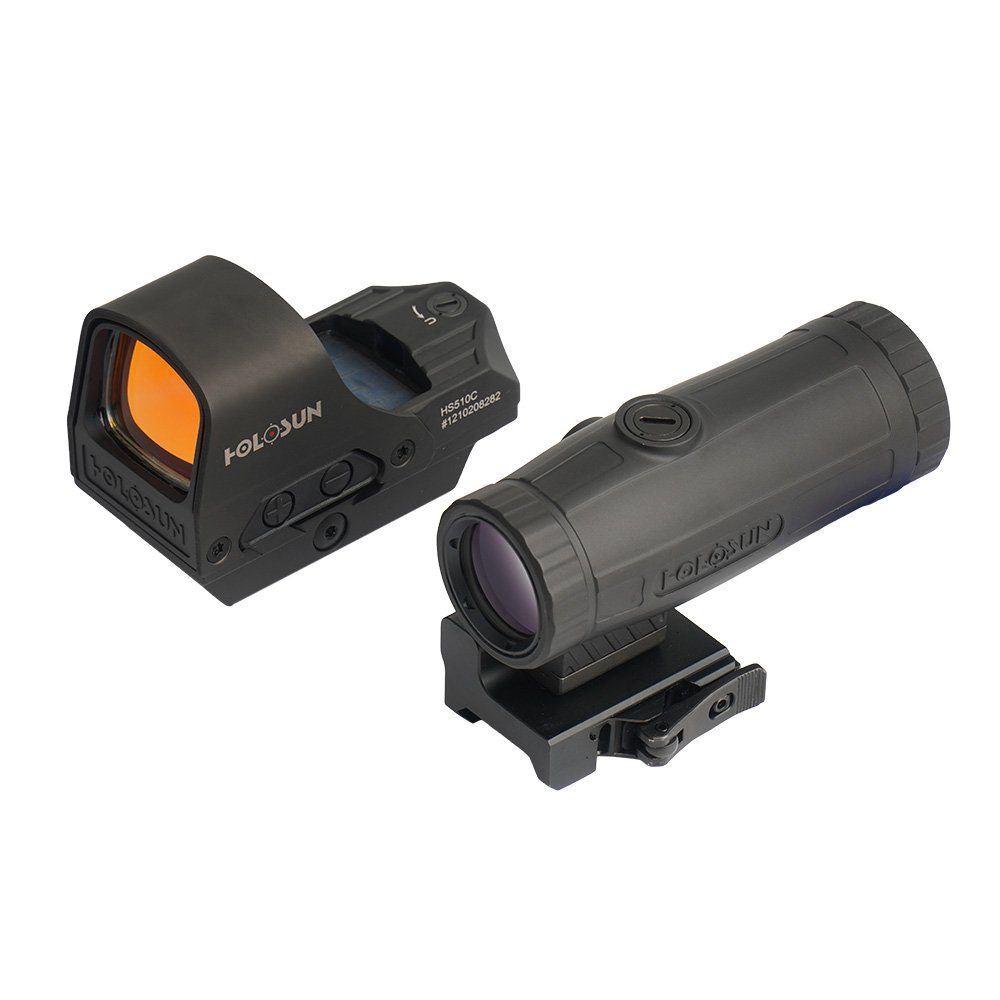

Holosun – HS510C Open Reflex Sight & HM3X Magnifier Set
A set of Open Reflex HS510C Multi Reticle red dot sigth with HM3X magnifier with x3 zoom.
The set is equipped with a Picatinny-compatible QD mount that makes attaching the red dot sight and magnifier easy and very fast.
The user can choose from three aiming points in the red dot sight – a 2 MOA dot, a 65 MOA circle and a combination of these. The red dot sight is equipped with a solar panel to reduce battery consumption. In addition, the solar panel has a function to automatically adjust the brightness of the aiming point.
The magnifier with 3x zoom has dioptric adjustment. The QD mount, on which the magnifier is placed, has a Flip-Up hinge, which allows you to fold or unfold the device very quickly.
The user receives the kit together with risers that allow for Absolute Co-witness or Lower ⅓ Co-witness mounting.
Features of the HS510C sight:
- Field of view wider than with closed sights
- Advanced LED technology that features low power consumption, thus providing up to 50,000 hours of operation on a single battery
- Multiple Reticle System – a choice of three target points
- System based on a single diode, does not affect zeroing
- Operates in automatic (default) or manual mode
- Built-in solar cell allows operation even when battery is low
- Light sensor function to adjust the spot intensity according to the light
- Durable lens with advanced multi-layer coatings
- No parallax
- Motion sensor to wake up the device from sleep mode
- Function of remembering the last used target mark and its intensity
- Low battery indication (target mark starts blinking slowly)
- Lightweight and durable housing made of 6061 aluminum and titanium
- Quick release QD buckle
- Waterproof to IP67 standard
Features of HM3X Magnifier:
- Durable anodized aluminum housing
- Meets IP67 water and dust resistance standard
- Provides 3x image magnification
- Highly transparent lenses
- Dioptric adjustment
- QD mount with Flip-Up hinge

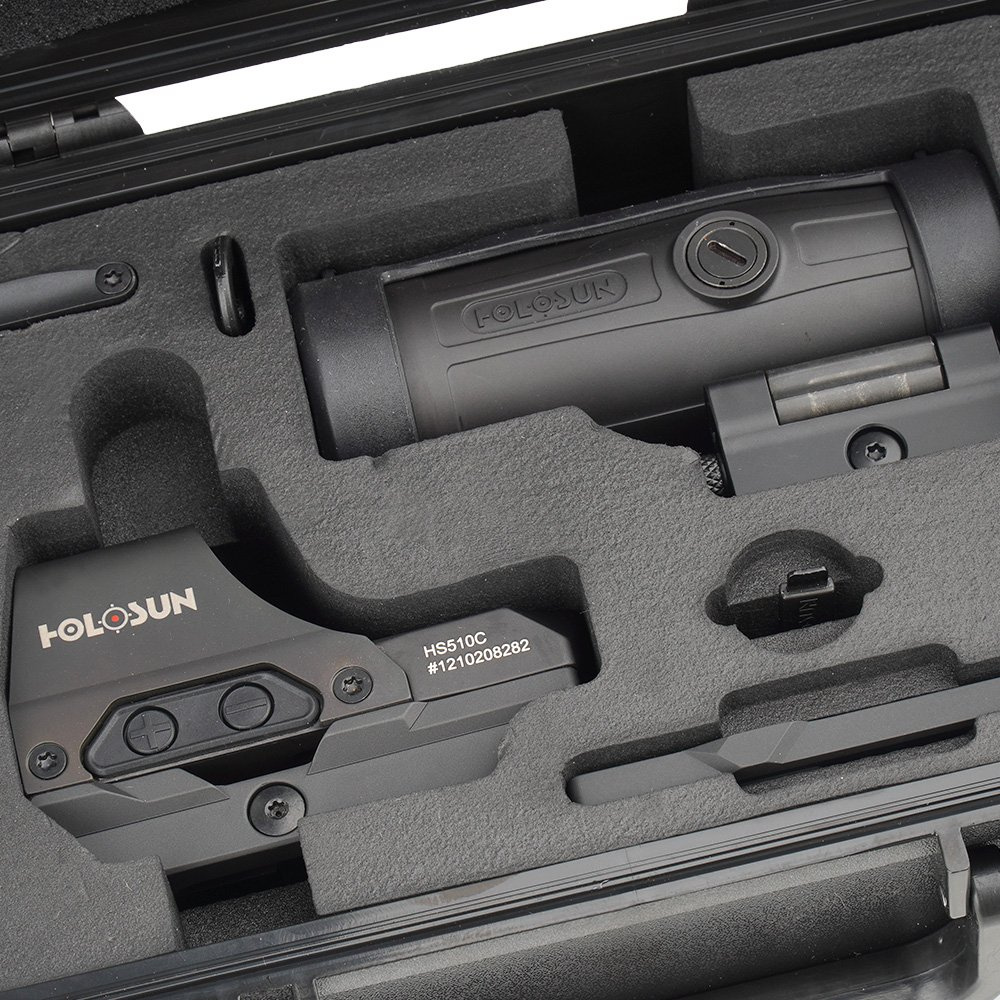

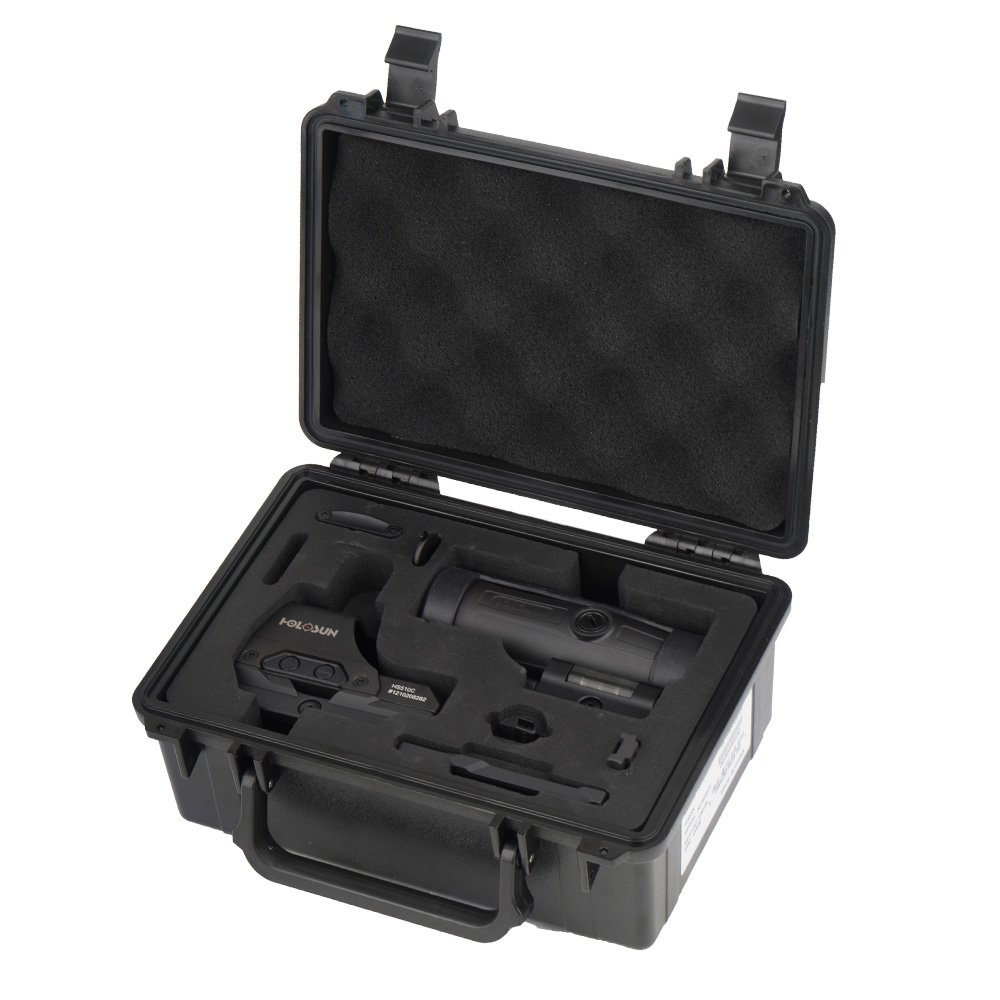

Included:
- HS510C Reflex Sight
- Magnifier HM3X
- Riser for sight
- Riser for magnifier
- Spare battery tray for sight (with screws)
- Torx key
- Adjustment key
- Microfiber cloth
- Transport case
Holosun Limited Lifetime Warranty
| Technical Data – HS510C Reflex Sight | |
|---|---|
| Lens size: | 32 x 24 mm |
| Aiming point type: | Dot Circular Dot in circle |
| Size of aiming point: | Dot 2 MOA Circular 65 MOA |
| Light Source: | LED |
| Distance from eye: | unlimited |
| Point adjustment step: | 1/2 MOA / click |
| Range of point adjustment: | ±40 MOA |
| Parallax: | ⩽±1 MOA |
| Magnification: | 1x |
| Power supply: | Solar cell + CR2032 battery |
| Battery life: | 50,000 h (dot, average brightness level) 20,000 h (dot and circle, average brightness level) |
| Automatic shutdown: | after 10 minutes of inactivity |
| Brightness adjustment: | 10 degrees + 2 degrees for night vision |
| Casing: | Aluminum T6061-T6 + titanium optics cover |
| Finish: | Micro-arc oxidation MAO |
| Mounting: | QD in Picatinny standard |
| Waterproofing: | IP67 |
| Operating temperature range: | -10°C to 50°C |
| Storage temperature range: | -40°C to 70°C |
| Vibration resistance: | up to 1000 G |
| Size: | 84 x 65 x 40 mm |
| Weight: | 205 g |
| Technical Data – HM3X Magnifier | |
|---|---|
| Magnification: | 3x |
| Exit pupil diameter | 0.29″ / 7.36 mm |
| Eye relief | 2.75″ / 69.85 mm |
| F.O.V. (degrees/feet): | 7° / 37 ft at 100 yds |
| Dioptric correction: | ±3D |
| Transmittance: | 0.75 |
| Storage temperature: | – 30°C – 70°C |
| Operating temperature: | – 30°C – 60°C |
| Water resistance: | IP67 |
| Azotium (concentration) | 0.9999 |
| Body: | Aluminum |
| Finish: | Micro-arc oxidation MAO |
| Size: | 99 x 41 x 60 mm |
| Weight: | 277 g |
